Deutsch

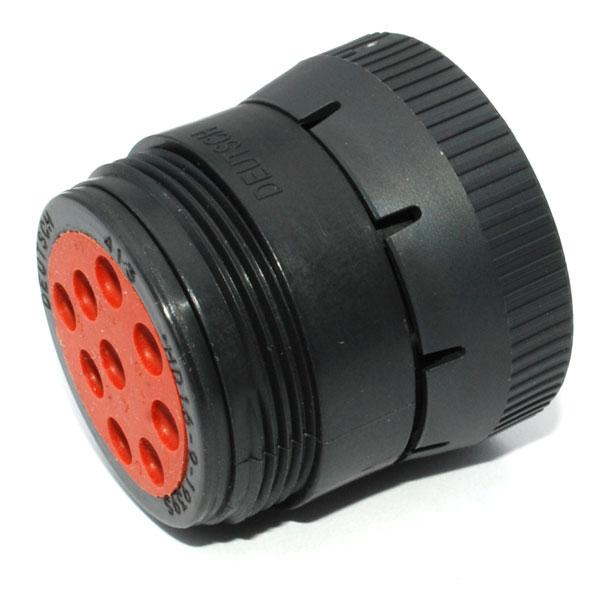

HD16-9-1939S, Plug,
9 Pin, Black, Threaded Rear, J1939
Limited Availability
$15.56
(Each)
A data port connector designed to allow an on-board CAN (Controller Area Network) system to mate with a diagnostic computer.
J1939/13 Universal 9-Pin Diagnostic. Use with 250kbps network.
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
J1939/13 Universal 9-Pin Diagnostic. Use with 250kbps network.
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Stock №
51-1691
Goes With
Full Specifications
| Group | Plugs |
| Brand | Deutsch |
| Part № | HD16-9-1939S |
| U/M | Each |
| Wire Range | 20-14 AWG |
| Cable Insulation Range | .100" - .150" |
| Holds | Socket |
| Cavities | 9 |
| Color | Black |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Circular |
| Max Current Range | 13 Amps |
| Shell Configuration | Threaded Rear |
| Mount | In-line |
| Special Modifications | 120 Ω Terminating Resistor (J1939) |
