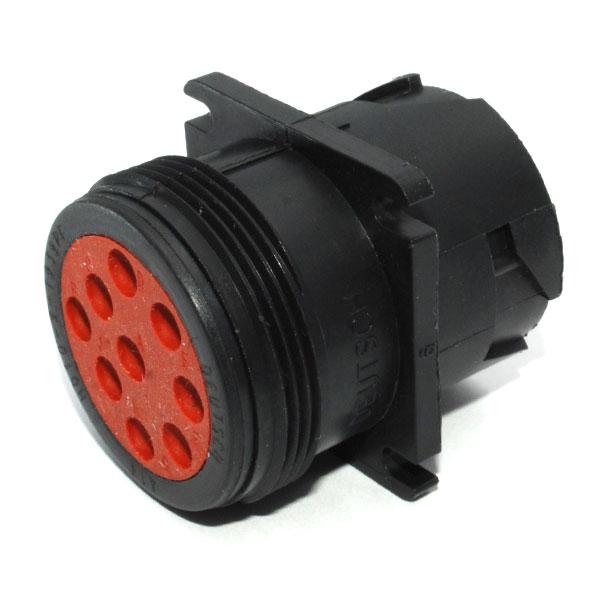

HD10-9-1939P Receptacle,
9 Pin, Black, Square Flange, Threaded Rear, J1939
Availability: In Stock
$21.84
(Each)
A data port connector designed to allow an on-board CAN (Controller Area Network) system to mate with a diagnostic computer.
J1939/13 Universal 9-Pin Diagnostic. Use with 250kbps network.
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
J1939/13 Universal 9-Pin Diagnostic. Use with 250kbps network.
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Stock №
51-4090
Goes With
Description
SubmersionProperly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Corrosion Resistance
Connectors show no evidence of corrosion after exposure to 48 hours of salt spray per MIL-STD 1344 method 1001.
Fluid Resistance
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Full Specifications
| Group | Receptacles |
| Brand | Deutsch |
| Part № | HD10-9-1939P |
| U/M | Each |
| Wire Range | 20-14 AWG |
| Cable Insulation Range | .100" - .150" |
| Holds | Pin |
| Cavities | 9 |
| Color | Black |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Circular |
| Max Current Range | 13 Amps |
| Shell Configuration | Threaded Rear |
| Mount | Flange |
| Special Modifications | 120 Ω Terminating Resistor (J1939) |
