Deutsch

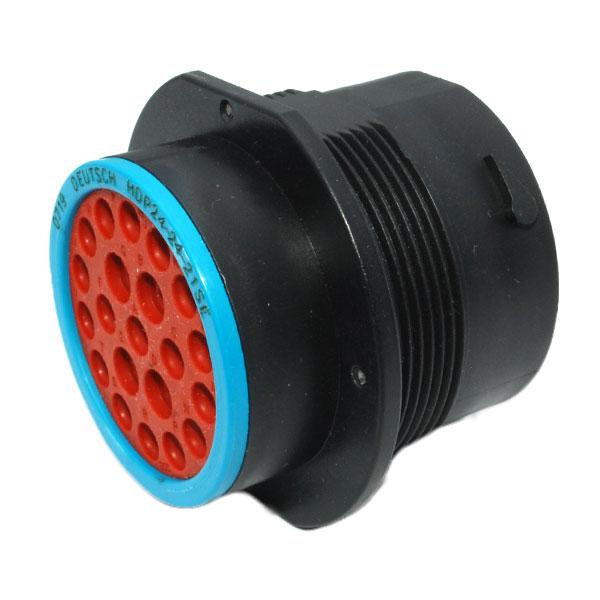

HDP24-24-21SE, Receptacle,
Flange, In Line, 21 Pin, Black
Limited Availability
$26.97
(Each)
A heavy duty environmentally sealed, multi-pin circular connector, featuring quick connect-disconnect bayonet coupling, single hole bulkhead mounting,silicone seals, with a rear insertion/rear removal contact system.
Pin Requirement:
4 size 12 AWG
17 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Pin Requirement:
4 size 12 AWG
17 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Stock №
51-2421
Goes With
Description
Moisture ResistanceWater does not penetrate seals when submerged in 3 feet of water.
Corrosion Resistance
Connectors show no evidence of corrosion after exposure to 48 hours of salt spray per MIL-STD 1334 method 1001.
Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Full Specifications
| Group | Receptacles |
| Brand | Deutsch |
| Part № | HDP24-24-21SE |
| U/M | Each |
| Wire Range | 20-10 AWG |
| Color | Black |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Circular |
