Deutsch

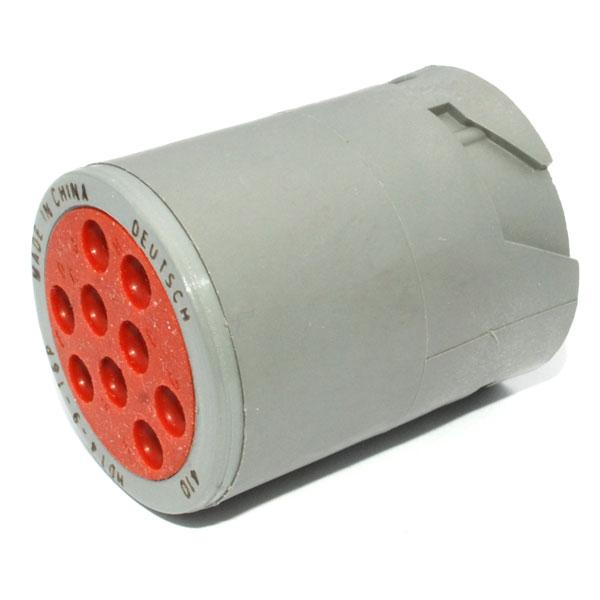

HD14-9-16P Receptacle,
9 Pin, Gray, Non-Threaded Rear
Availability: In Stock
$13.90
(Each)
Deutsch HD10 Series is designed to provide a solution to today's interconnection problems found in the heavy duty industry. The HD10 Series eliminates problems associated with assembly and maintenance time designed for long service life.
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Stock №
51-6016
Goes With
Full Specifications
| Group | Receptacles |
| Brand | Deutsch |
| Part № | HD14-9-16P |
| U/M | Each |
| Wire Range | 20-14 AWG |
| Cable Insulation Range | .100" - .150" |
| Holds | Pin |
| Cavities | 9 |
| Color | Gray |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Circular |
| Max Current Range | 13 Amps |
| Shell Configuration | Non-Threaded Rear |
| Mount | In-line |
