Deutsch

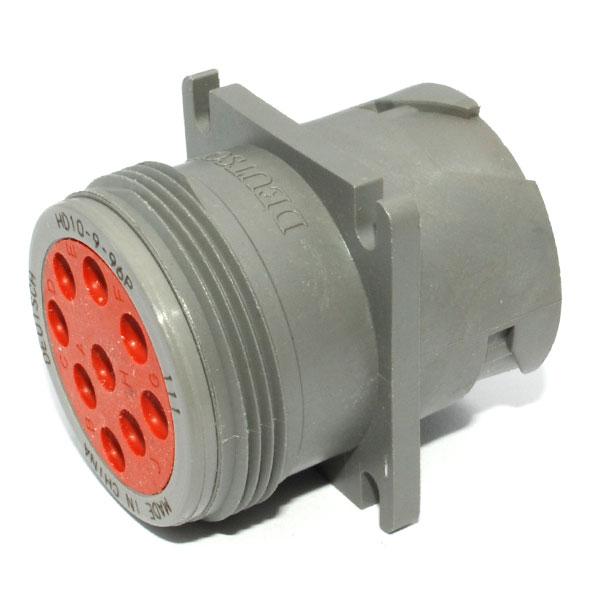

HD10-9-96P Receptacle,
9 Pin, Gray, Square Flange, Threaded Rear
Availability: In Stock
$15.98
(Each)
Deutsch HD10 Series is designed to provide a solution to today's interconnection problems found in the heavy duty industry. The HD10 Series eliminates problems associated with assembly and maintenance time designed for long service life.
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Pin Requirement:
9 size 20-16 AWG
Sealing plugs must be used for any unused cavities
Stock №
51-4099
Goes With
Description
SubmersionProperly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Corrosion Resistance
Connectors show no evidence of corrosion after exposure to 48 hours of salt spray per MIL-STD 1344 method 1001.
Fluid Resistance
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Full Specifications
| Group | Receptacles |
| Brand | Deutsch |
| Part № | HD10-9-96P |
| U/M | Each |
| Wire Range | 20-14 AWG |
| Cable Insulation Range | .100" - .150" |
| Holds | Pin |
| Cavities | 9 |
| Color | Gray |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Circular |
| Max Current Range | 13 Amps |
| Shell Configuration | Threaded Rear |
| Mount | Flange |
