Deutsch

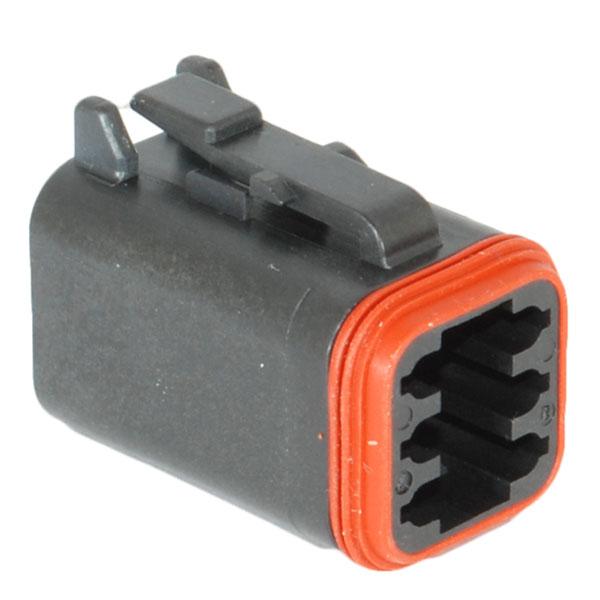

DT06-6S-P012, Plug,
6 Pin, Black, Enhanced Seal Retention
Limited Availability
$4.21
(Each)
Deutsch DT Series of environmentally-sealed, connectors are designed specifically for cable to cable applications. Deutsch DT series general purpose connectors provide reliability and performance at the lowest cost.
Stock №
51-2323
Goes With
Description
Submersion:Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from operating temperature.
Full Specifications
| Group | Plugs |
| Brand | Deutsch |
| Part № | DT06-6S-P012 |
| U/M | Each |
| Wedgelock Requirement | W6S-P012 (sold separately) |
| Wire Range | 20-14 AWG |
| Cable Insulation Range | .088" - .145" |
| Holds | Socket |
| Cavities | 6 |
| Color | Black |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Rectangular |
| Max Current Range | 13 Amps |
| Special Modifications | Enhanced Seal Retention |
