Deutsch

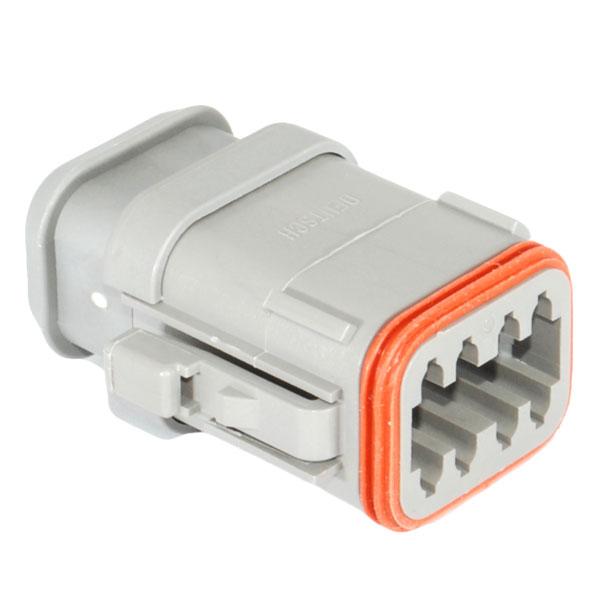

DT06-08SA-E008 Plug, Keyed in A,
8 Pin, Gray, Shrink Boot Adapter
Limited Availability
$10.04
(Each)
Stock №
51-0688
Goes With
Description
Submersion:Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.
Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.
Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from operating temperature.
Full Specifications
| Group | Plugs |
| Brand | Deutsch |
| Part № | DT06-08SA-E008 |
| U/M | Each |
| Wedgelock Requirement | W8S (sold separately) |
| Keyed | A |
| Wire Range | 20-14 AWG |
| Cable Insulation Range | .088" - .145" |
| Holds | Socket |
| Cavities | 8 |
| Color | Gray |
| Material | Plastic |
| Operating Temperature | -55°C to +125°C (-67°F to 257°F) |
| Shape | Rectangular |
| Max Current Range | 13 Amps |
| Mount | In-line |
| Special Modifications | Shrink Boot Adapter |
