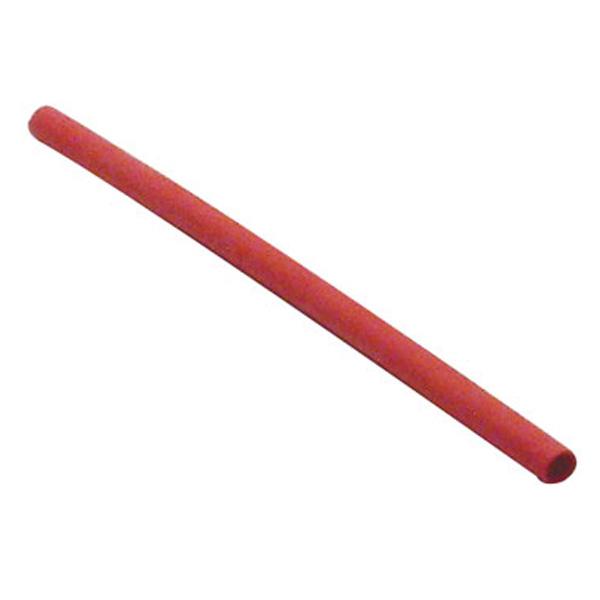

3:1 Flexible Polyolefin Dual Wall Heat Shrink Tubing,
Red, 1", 4/0 AWG-500 MCM
Availability: In Stock
$20.60
(4' Stick)
Stock №
20-3012
Full Specifications
| Group | 3:1 Polyolefin Dual Wall Adhesive Lined Heat Shrink Tubing |
| Brand | Generic |
| U/M | 4' Stick |
| Shrink Ratio | 3:1 |
| Size | 1" |
| Color | Red |
| Expanded / Recovery Dia. | 1.00" / .320" |
| Recovered Wall Thickness | .1" |
| Min. Recovery Temp. | 212 °F |
| Dielectric Strength | 700 V/mil |
| Volume Resistivity | 1015 Ω cm |
| Tensile Strength | 2100 psi |
| Ultimate Elongation | 450% |
| Material | Adhesive Lined Polyolefin |
| Flammability | Self Extinguish - Meets UL 224 Flame Test |
| Operating Temp. Range | -55°C to 110°C (67°F to 230°F) |
| Corrosive Effect | Non-Corrosive |
| Abrasion Resistance | Good |
| MIL-SPEC | MIL-DTL-23053/15 |
