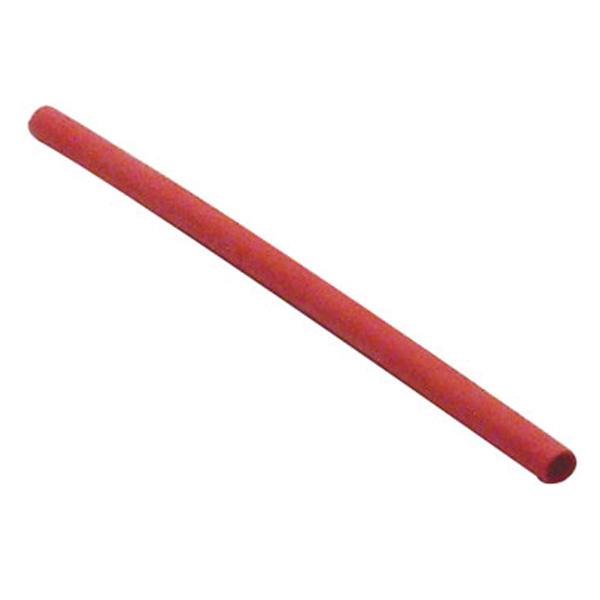

3:1 Flexible Polyolefin Dual Wall Heat Shrink Tubing,
Adhesive-Lined, Red, 1/2", 10-4 AWG
Availability: In Stock
$9.56
(4' Stick)
Stock №
20-3122
Full Specifications
| Group | 3:1 Polyolefin Dual Wall Adhesive Lined Heat Shrink Tubing |
| Brand | Generic |
| U/M | 4' Stick |
| Shrink Ratio | 3:1 |
| Size | 1/2" |
| Color | Red |
| Expanded / Recovery Dia. | .510" / .160" |
| Recovered Wall Thickness | .070" |
| Min. Recovery Temp. | 212 °F |
| Dielectric Strength | 700 V/mil |
| Volume Resistivity | 1014 Ω cm |
| Tensile Strength | 2100 psi |
| Ultimate Elongation | 450% |
| Material | Adhesive Lined Polyolefin |
| Flammability | Self Extinguish - Meets UL 224 Flame Test |
| Operating Temp. Range | -55°C to 110°C (67°F to 230°F) |
| Corrosive Effect | Non-Corrosive |
| Abrasion Resistance | Good |
| MIL-SPEC | SAE-AMS-DTL 23053/4 Class 3 |
