PolyStar® Series Enclosure, Opaque Cover

Zoom Out
Zoom In

Stahlin®

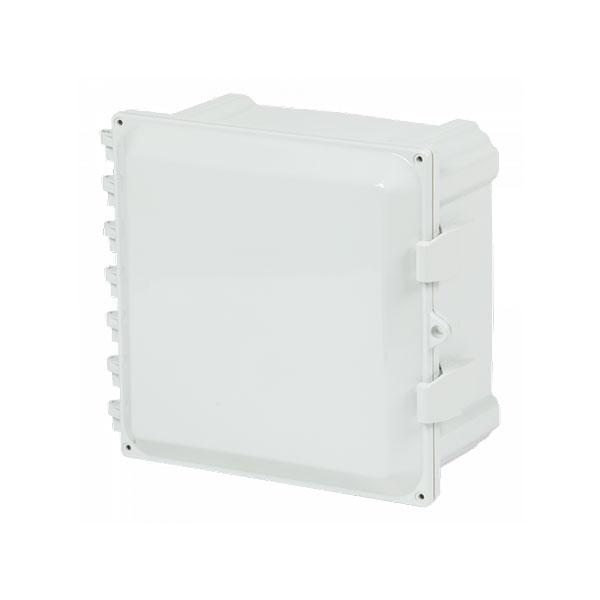

PolyStar® Series Enclosure, Opaque Cover, 8" x 8" x 4"

Availability: In Stock

$126.97
(Each)
Polycarbonate enclosures are UV stabilized suitable for indoor and outdoor applications. Built in mounting bosses and side mount solutions for DIN rail systems. Includes multi-directional mounting feet and hardware.



! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Stock № 46-2808

Full Specifications

Group PolyStar Series
Brand Stahlin®
Part № PC808
U/M Each
Width 8"
Height 8"
Depth 4"
Color Glacier Gray
Material Polycarbonate with UV inhibitors
Gasket Material Neoprene rope style
Cover Type Hinged/Opaque
Lock Type Padlock Latch
Operating Temperature -40°F to +248°F (-40°C to +120°C)
Flammability UL94-5V0
Sealing Rating IP66 to EN 60529
Dielectric Strength (380 volts/mil) Electrical Insulator
Impact Resistance IK10
NEMA Rating 1, 3R, 4, 4X, 6P, 12
Self Extinguishing Non-haloginated, non-flame propagating
Outdoor Exposure UV (f1) Rated (UL746C)

Minimum:
