Sealcon

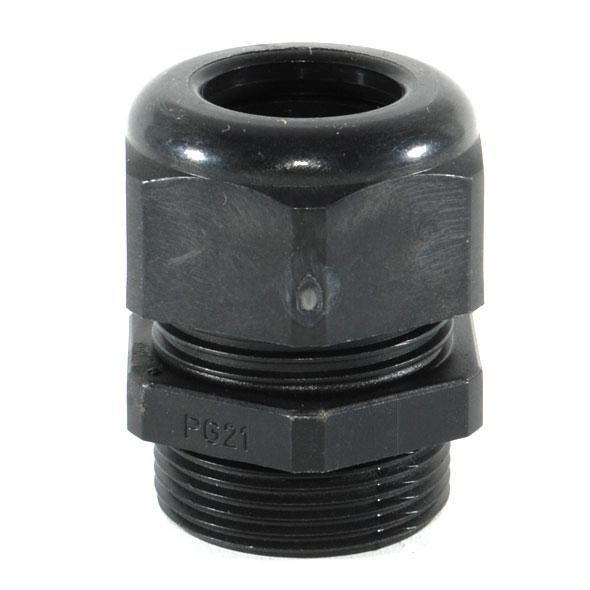

Nylon Strain Relief Dome Fitting,
Black, .51" - .71" cable range, PG 21
Availability: In Stock
$16.00
(5 Pack)
Liquid tight strain relief dome fitting. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.
Time Saving Installation:
Simply push the cable through the strain relief fitting - tighten dome - done!
Locking Nuts available, sold separately, used when cord grips are installed into non-threaded holes.
Seal Rings provide external seal between installation and strain relief. Sold Separately.
Time Saving Installation:
Simply push the cable through the strain relief fitting - tighten dome - done!
Locking Nuts available, sold separately, used when cord grips are installed into non-threaded holes.
Seal Rings provide external seal between installation and strain relief. Sold Separately.
Stock №
59-3021
Sealcon
Goes With
Full Specifications
| Group | Standard Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD21AA-BK |
| U/M | 5 Pack |
| Application | • Food & Beverage • Renewable - Wind & Solar • Lighting • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Marine • Medical • Automotive / Transportation • Military / Navy / Government |
| Cable Range | .51" - .71" (13 - 18 mm) |
| Color | Black |
| Thread Type & Size | PG 21 |
| Major Thread Dia. | 1.11" (28.3mm) |
| Thread Pitch | .062" (1.59mm) |
| Clearance Hole | 1.12" (28.4 mm) |
| Body Length | 1.22" (31 mm) |
| Thread Length | .43" (11 mm) |
| Wrench Flat | 1.30" (33 mm) |
| Material | Nylon 6/6 |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 44.2 lb |
| Pull-Test Rating | 35 lb |
