Nylon Strain Relief Dome Fitting

Zoom Out
Zoom In

Sealcon

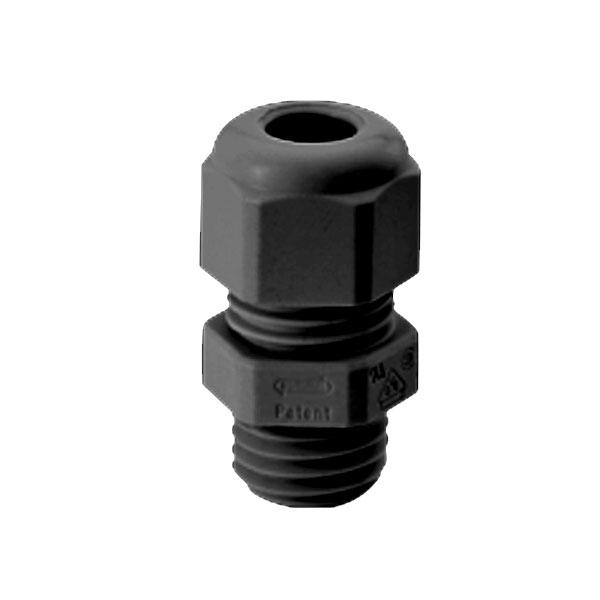

Nylon Strain Relief Dome Fitting, Black, .24" - .47" cable range, M20 x 1.5

Availability: In Stock

$14.20
(5 Pack)
Liquid tight strain relief dome fitting. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.

Time Saving Installation:
Simply push the cable through the strain relief fitting - tighten dome - done!

Locking Nuts available, sold separately, used when cord grips are installed into non-threaded holes.

Seal Rings provide external seal between installation and strain relief. Sold Separately.

Stock № 59-3320
Sealcon

Goes With

Full Specifications

Group Standard Liquid Tight Strain Relief Dome Fittings
Brand Sealcon
Part № CD20MA-BK
U/M 5 Pack
Application • Food & Beverage • Renewable - Wind & Solar • Lighting • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Marine • Medical • Automotive / Transportation • Military / Navy / Government
Cable Range .24" - .47" (6 - 12 mm)
Color Black
Thread Type & Size M20 x 1.5
Clearance Hole .79" (20 mm)
Body Length 1.06" (27 mm)
Thread Length .35" (9 mm)
Wrench Flat .94" (24mm)
Material Nylon 6/6
Operating Temperature - 40°C to 100°C (- 40°F to 212°F)
Pressure Rating 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
Recommended Torque 22.1 lb
Pull-Test Rating 35 lb
