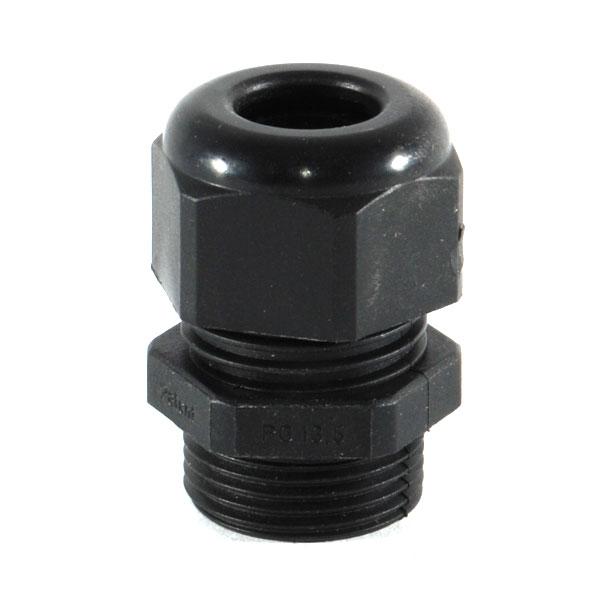

Nylon Strain Relief Dome Fitting

Zoom Out
Zoom In

Sealcon
Nylon Strain Relief Dome Fitting, Black, .24" - .47" cable range, PG 13

Availability: In Stock

$9.70
(5 Pack)
Liquid tight strain relief dome fitting. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.

Time Saving Installation:
Simply push the cable through the strain relief fitting - tighten dome - done!

Locking Nuts available, sold separately, used when cord grips are installed into non-threaded holes.

Seal Rings provide external seal between installation and strain relief. Sold Separately.

Stock № 59-3013
Sealcon

Full Specifications

Group Standard Liquid Tight Strain Relief Dome Fittings
Brand Sealcon
Part № CD13AA-BK
U/M 5 Pack
Application • Food & Beverage • Renewable - Wind & Solar • Lighting • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Marine • Medical • Automotive / Transportation • Military / Navy / Government
Cable Range .24" - .47" (6 - 12 mm)
Color Black
Thread Type & Size PG 13
Major Thread Dia. .80" (20.4mm)
Thread Pitch .055" (1.51mm)
Clearance Hole .80" (20.3 mm)
Body Length 1.06" (27 mm)
Thread Length .35" (9 mm)
Wrench Flat .94" (24mm)
Material Nylon 6/6
Operating Temperature - 40°C to 100°C (- 40°F to 212°F)
Pressure Rating 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
Recommended Torque 22.1 lb
Pull-Test Rating 35 lb
