Sealcon

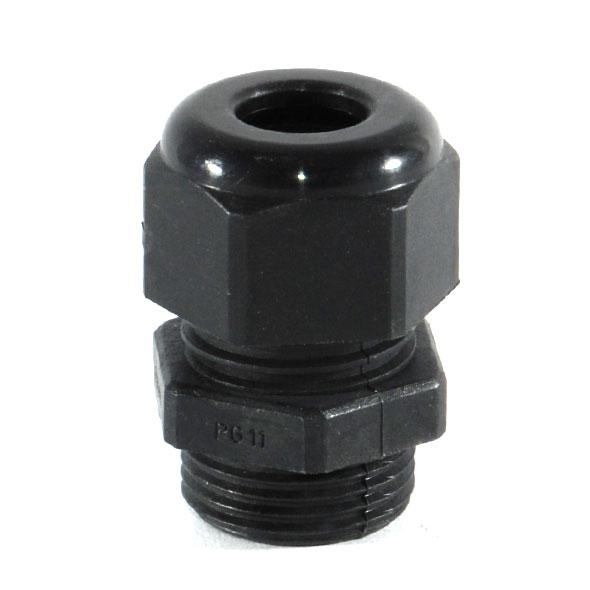

Nylon Strain Relief Dome Fitting,
Black, .20" - .39" cable range, PG 11
Availability: In Stock
$9.43
(5 Pack)
Liquid tight strain relief dome fitting. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.
Time Saving Installation:
Simply push the cable through the strain relief fitting - tighten dome - done!
Locking Nuts available, sold separately, used when cord grips are installed into non-threaded holes.
Seal Rings provide external seal between installation and strain relief. Sold Separately.
Time Saving Installation:
Simply push the cable through the strain relief fitting - tighten dome - done!
Locking Nuts available, sold separately, used when cord grips are installed into non-threaded holes.
Seal Rings provide external seal between installation and strain relief. Sold Separately.
Stock №
59-3011
Sealcon
Goes With
Full Specifications
| Group | Standard Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD11AA-BK |
| U/M | 5 Pack |
| Application | • Food & Beverage • Renewable - Wind & Solar • Lighting • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Marine • Medical • Automotive / Transportation • Military / Navy / Government |
| Cable Range | .20" - .39" (5 - 10 mm) |
| Color | Black |
| Thread Type & Size | PG 11 |
| Major Thread Dia. | .73" (18.6mm) |
| Thread Pitch | .055" (1.51mm) |
| Clearance Hole | .73" (18.5 mm) |
| Body Length | .97" (25 mm) |
| Thread Length | .31" (8 mm) |
| Wrench Flat | .87" (22 mm) |
| Material | Nylon 6/6 |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 22.1 lb |
| Pull-Test Rating | 35 lb |
