HellermannTyton

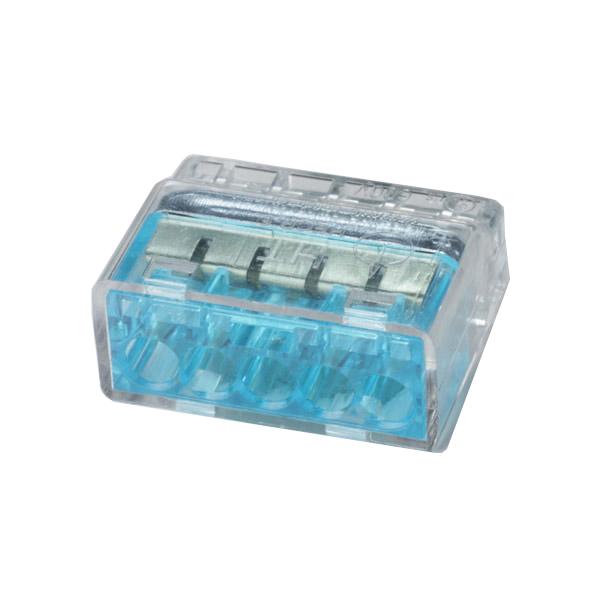

HelaCon Plus Push-In Style Wire Connector, HECP-5, 148-90003,
5-Port Blue, 22-12 AWG Solid/Stranded
Availability: In Stock
$7.95
(25 Pack)
Stock №
15-1483
Full Specifications
| Part № | HECP-5 |
| Brand | HellermannTyton |
| U/M | 25 Pack |
| Width | .95" |
| Height | 10.45mm |
| Depth | .75" |
| Color | Blue / Transparent |
| Housing Material | Polycarbonate |
| Flammability | UL94 V0 |
| Operating Temperature Range | -22 °F to +221 °F (-30 °C to +105 °C) |
| Max Current Rating | 24 Amp |
| Max. Voltage Rating | 600v |
| Wire Range | AWG 12 to 22 solid/stranded |
| Strip Length | 11mm |
| MIL SPEC | MIL-STD-202G Method 215K / NEMKO |
