HellermannTyton

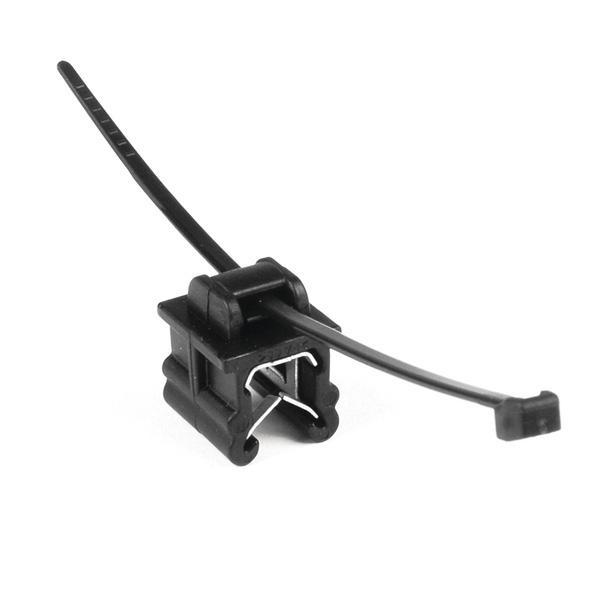

T18ROSEC19, 156-04600, 3.9" Edge Clip, Outside Serrated,
18lb, Top Mount, 3-6mm Panel Thickness
Availability: In Stock
$46.83
(50 Pack)
3.9", 18lb tensile strength cable tie and UV edge clip. Designed for bundling and securing cables to the edge of a plastic or sheet metal where holes are not available. Inside serrated tie.
Stock №
44-2410
Goes With
Full Specifications
| Brand | HellermannTyton |
| Part № | 156-04600 |
| U/M | 50 Pack |
| Type | Two Piece Edge Clips |
| Color | Black |
| Length | 3.9" |
| Min. Tensile Strength | 18lbs |
| Max. Bundle Diameter | .79" |
| Fixing | Top |
| Cable Tie Variant | Outside Serrated |
| Cable Bundle Orientation | 90° To The Edge |
| Cable Tie Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Cable Tie Operating Temperature | -40 °F to +221 °F (-40 °C TO +105 °C) continuous |
| Cable Tie Flammability | UL94 V2 |
| Edge Clip Panel Thickness | .117" - .234" (3-6mm) |
| Edge Clip Material | Polyamide 6.6 Impact modified, heat stabilized, UV resistant (PA66HIRHS) |
| Edge Clip Flammability | UL94 HB |
| Edge Clip Operating Temperature | -40 °F to +230 °F (-40 °C TO +110 °C) continuous |
