HellermannTyton

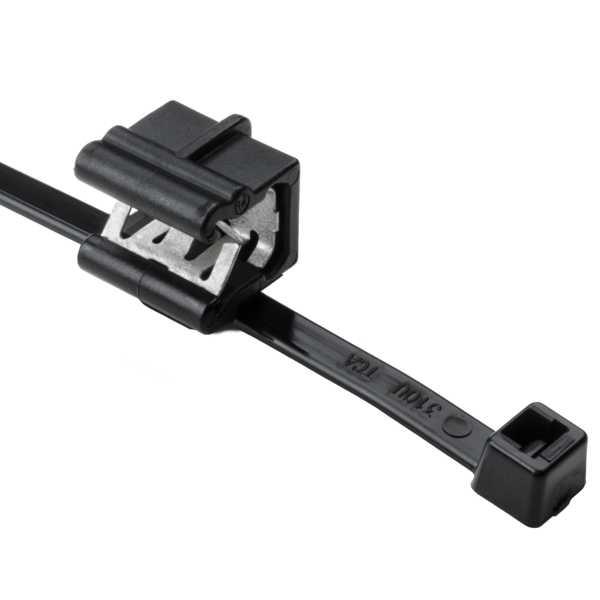

T50REC24, 156-00593, 7.9" Edge Clip, Inside Serrated,
50lb, Side Mount, UV Black, .12"-.24" Panel Thickness
Availability: In Stock
$30.80
(50 Pack)
7.9", 50lb tensile strength UV stabilized tie and edge clip. Designed for bundling and securing cables to the edge of a plastic or sheet metal where holes are not available. Inside serrated tie.
Stock №
44-2460
Goes With
Full Specifications
| Brand | HellermannTyton |
| Part № | 156-00593 |
| U/M | 50 Pack |
| Type | Two Piece Edge Clips |
| Color | Black |
| Length | 7.9" |
| Min. Tensile Strength | 50lbs |
| Max. Bundle Diameter | 2.0" |
| Fixing | Side |
| Cable Tie Variant | Inside Serrated |
| Cable Bundle Orientation | 90° To The Edge |
| Cable Tie Material | Polyamide 6.6 UV-stabilized (PA66UV) |
| Cable Tie Operating Temperature | -40 °F to +185 °F (-40 °C TO +85 °C) |
| Cable Tie Flammability | UL94 V2 |
| Edge Clip Panel Thickness | .12" - .24" |
| Edge Clip Material | Polymide 6.6 High Impact Modified, Heat Stabilized, UV Stabilized (PA66HIRHSUV) |
| Edge Clip Flammability | UL94 HB |
| Edge Clip Operating Temperature | -40 °F to +230 °F (-40 °C TO +110 °C) continuous |
