HellermannTyton
T50REC5B, EC5B, 8" Edge Clip, Inside Serrated,
50lb, Side Mount, .039"-.117" Panel Thickness
Availability: In Stock
$55.00
(50 Pack)

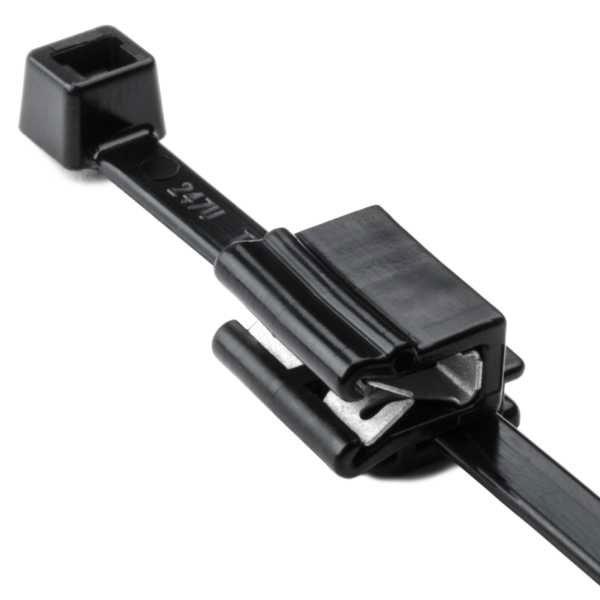

7.9", 50lb tensile strength UV stabilized tie and edge clip. Designed for bundling and securing cables to the edge of a plastic or sheet metal where holes are not available. Inside serrated tie.
Stock №
44-0540
Goes With
Full Specifications
| Brand | HellermannTyton |
| Part № | 156-00540 |
| U/M | 50 Pack |
| Type | Two Piece Edge Clips |
| Color | Black |
| Length | 8" |
| Min. Tensile Strength | 50lbs |
| Max. Bundle Diameter | 1.8" |
| Fixing | Side |
| Cable Tie Variant | Inside Serrated |
| Cable Bundle Orientation | 90° To The Edge |
| Cable Tie Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Edge Clip Panel Thickness | .039" - .117" (1-3mm) |
| Edge Clip Material | Polyamide 6.6 Impact modified, heat stabilized, UV resistant (PA66HIRHS) |
| Operating Temperature | -40 °F to +221 °F (-40 °C TO +105 °C) continuous |
| Flammability | UL94 HB |
