HellermannTyton

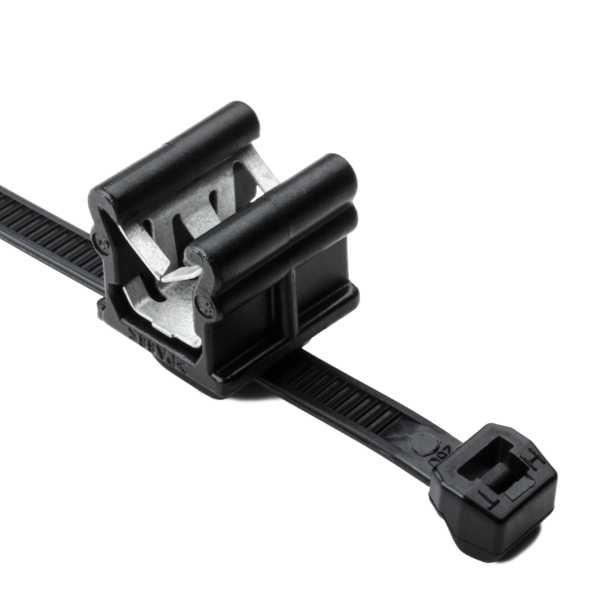

T50ROSEC20, EC20, 7.9" Edge Clip, Outside Serrated,
50lb, Parallel Rounded Top Mount, .117"-.234" Panel Thickness
Availability: In Stock
$52.34
(50 Pack)
7.9" 50lb tensile strength UV stabilized tie and edge clip. Designed for bundling and securing cables to the edge of a plastic or sheet metal where holes are not available.
Stock №
44-1850
Goes With
Full Specifications
| Brand | HellermannTyton |
| Part № | 156-00873 |
| U/M | 50 Pack |
| Type | Two Piece Edge Clips |
| Color | Black |
| Length | 7.9" |
| Min. Tensile Strength | 50lbs |
| Max. Bundle Diameter | 1.8" |
| Fixing | Top |
| Cable Tie Variant | Outside Serrated |
| Cable Bundle Orientation | Parallel To The Edge |
| Cable Tie Material | Polyamide 6.6 heat stabilized (PA66HS) |
| Cable Tie Operating Temperature | -40 °F to +221 °F (-40 °C TO +105 °C) continuous |
| Cable Tie Flammability | UL94 V2 |
| Edge Clip Panel Thickness | .117" - .234" (3-6mm) |
| Edge Clip Material | Polyamide 6.6 Impact modified, heat stabilized, UV resistant (PA66HIRHS) |
| Edge Clip Flammability | UL94 HB |
| Edge Clip Operating Temperature | -40 °F to +230 °F (-40 °C TO +110 °C) continuous |
