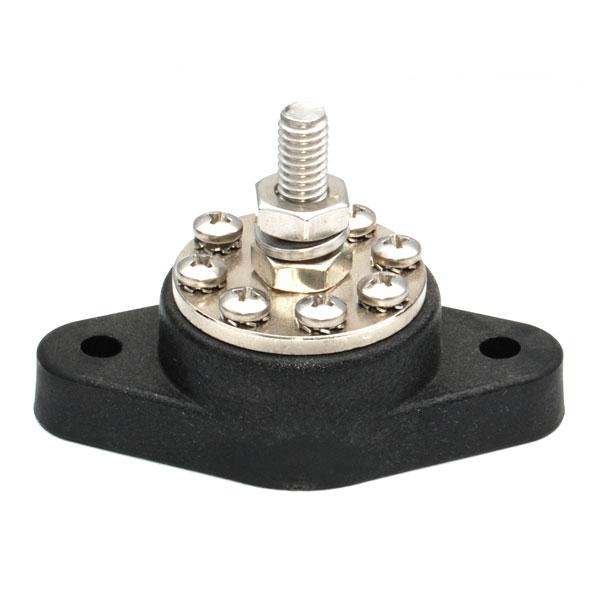

Junction Power Distribution Post,
Negative, Black, 8 Position, 5/16" Stud
Availability: In Stock
$7.16
(Each)
• 8 Connection points carry 20amp each @ 12vdc, 15 in./lb torque
• 48vdc max voltage
• Glass-Filled Nylon base
• Conductive Nut 120 in./lb max torque
• Use with terminal insulators to meet ABYC, USCG and ISO safety standards
• 48vdc max voltage
• Glass-Filled Nylon base
• Conductive Nut 120 in./lb max torque
• Use with terminal insulators to meet ABYC, USCG and ISO safety standards
Stock №
77-7831
Goes With
Full Specifications
| Brand | Generic |
| Part № | 77-7831 |
| U/M | Each |
| Color | Black |
| Stud Size | 5/16"-18 |
| Stud Height | 3/4" |
| Mounting Centers | 2.50" |
| Mounting Holes | Accepts 1/4" Screws (Not Included) |
| Terminal Screws | 8 x #8-32 |
| Maximum Voltage | 48 Volts DC |
