DTM06-6S Plug

Zoom Out
Zoom In

Deutsch

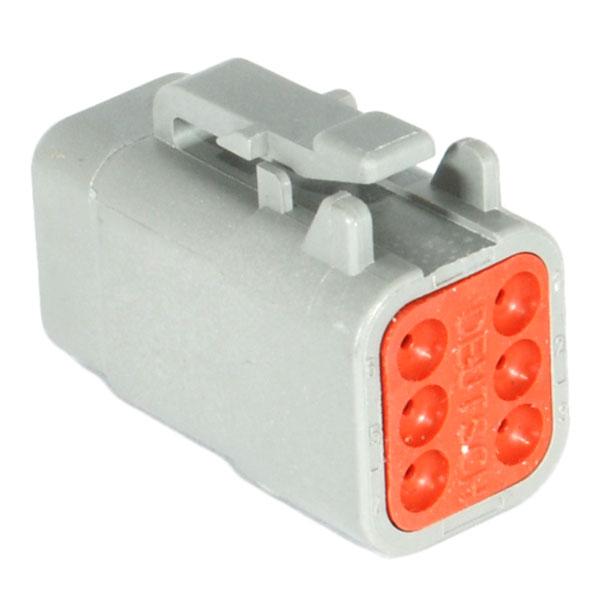

DTM06-6S Plug, 6 Pin, Gray

Limited Availability

$2.97
(Each)
Deutsch DTM Series of transportation connectors are used in harsh environmental applications where reliable signal circuits are critical to operating performance. Typical applications include on or around engine, transmission and under hood, anywhere data signals or critical electronic circuits go, DTM Series will provide reliable peak connector performance.
Stock № 51-0662

Description

Submersion:
Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.

Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.

Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.

Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from operating temperature.

Full Specifications

Group Cavity Plugs
Brand Deutsch
Part № DTM06-6S
U/M Each
Wedgelock Requirement WM-6S (sold separately)
Wire Range 22-16 AWG
Cable Insulation Range .053" - .120"
Holds Socket
Cavities 6
Color Gray
Material Plastic
Operating Temperature -55°C to +125°C (-67°F to 257°F)
Shape Rectangular
Max Current Range 7.5 Amps
Mount In-line
