DTM04-12PA Receptacle, Keyed in A

Zoom Out
Zoom In

Deutsch

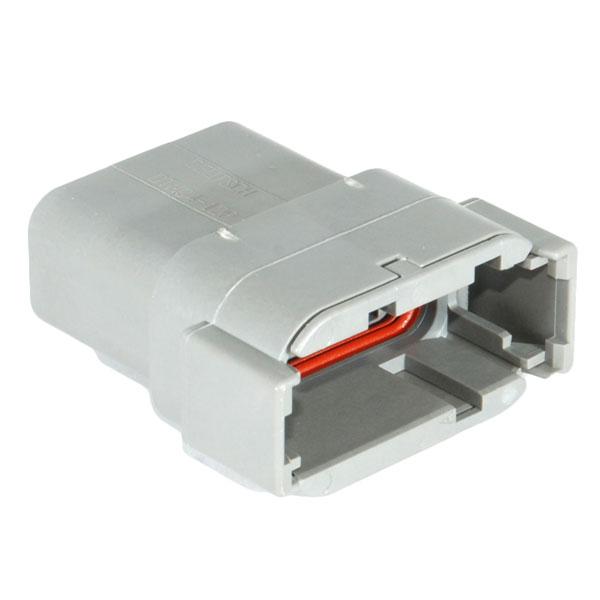

DTM04-12PA Receptacle, Keyed in A, 12 Pin, Gray

Limited Availability

$5.41
(Each)
Stock № 51-0413

Description

Submersion:
Properly wired and mated connection will withstand immersion under 3 feet of water without loss of electricity or leakage.

Fluid Resistance:
Fluid resistance to most fluids used in industrial applications.

Vibration:
No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G's at 10 to 2000 Hz in each of the 3 mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.

Thermal Cycle:
No cracking, chipping or leaking after 20 test cycles from operating temperature.

Full Specifications

Group Receptacles
Brand Deutsch
Part № DTM04-12PA
U/M Each
Wedgelock Requirement WM-12P (sold separately)
Keyed A
Wire Range 22-16 AWG
Cable Insulation Range .053" - .120"
Holds Pin
Cavities 12
Color Gray
Material Plastic
Operating Temperature -55°C to +125°C (-67°F to 257°F)
Shape Rectangular
Max Current Range 7.5 Amps
Mount In-line
