Click Bond®

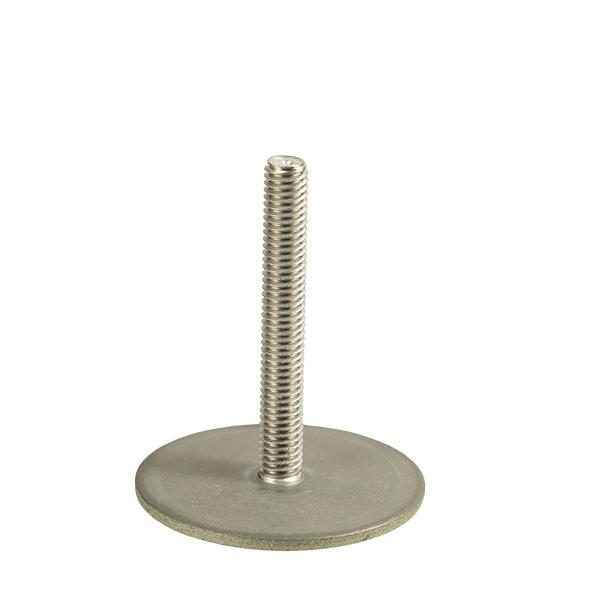

CS125-1032-24CRP ABS Approved Imperial Stud,
#10-32 x 1-1/2", Primed Base
CALL FOR AVAILABILITY
$6.70
(Each)
Stainless steel base stud for securing or clamping of systems to structure.
Ultimate Load:
2,000lb Shear, 1,000lb Tension.
ABS Design Load:
150lb Shear, 75lb Tension.
Ultimate Load:
2,000lb Shear, 1,000lb Tension.
ABS Design Load:
150lb Shear, 75lb Tension.
Stock №
68-0118
Click Bond®
Goes With
Full Specifications
| Group | Click Bond Studs |
| Brand | Click Bond® |
| Part № | CS125-1032-24CRP |
| U/M | Each |
| Stud Size | 10-32 |
| Stud Length | 1-1/2" |
| Base Diameter | 1-1/4" |
| Base Material | Stainless Steel / Epoxy Primer |
| Stud Material | Stainless Steel |
