Click Bond®

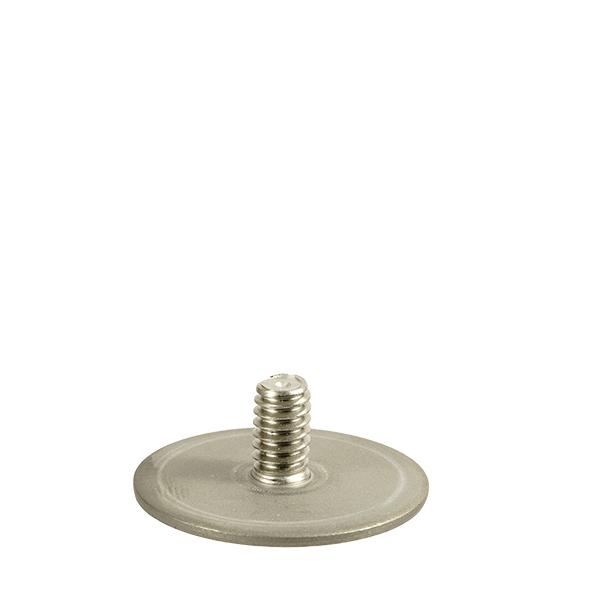

CS125-1420-8CR ABS Approved Imperial Stud,
1/4-20 x 1/2"
Availability: 225
$6.25
(Each)
Stainless steel base stud for securing or clamping of systems to structure.
Ultimate Load:
2,000lb Shear, 1,000lb Tension.
ABS Design Load:
150lb Shear, 75lb Tension.
Ultimate Load:
2,000lb Shear, 1,000lb Tension.
ABS Design Load:
150lb Shear, 75lb Tension.
Stock №
68-0108
Click Bond®
Goes With
Full Specifications
| Group | Click Bond Commercial Studs |
| Brand | Click Bond® |
| Part № | CS125-1420-8CR |
| U/M | Each |
| Stud Size | 1/4-20 |
| Stud Length | 1/2" |
| Base Diameter | 1-1/4" |
| Base Material | Stainless Steel |
| Stud Material | Stainless Steel |
| NSN Part Number | 5307-01-376-2999 |
