Blue Sea

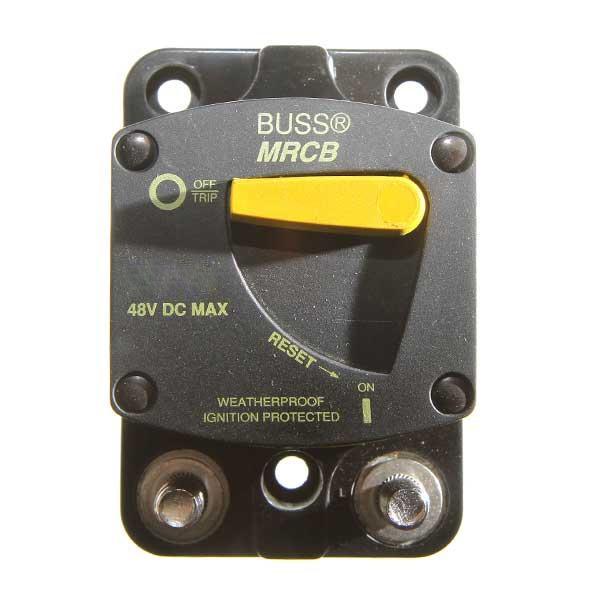

7146, Series 187 Marine Rated Circuit Breaker,
Surface Mount, 120 Amp
Call For Lead Time
$83.48
(Each)
Waterproof. Ignition protected. Combines switching and circuit protection into a single device. Trip free design cannot be held on during fault current condition. Accepts #10 (M5) screw.
Stock №
79-7146
Full Specifications
| Brand | Blue Sea |
| Part № | 7146 |
| U/M | Each |
| Height | 1.72" |
| Length | 3.44" |
| Width | 2.32" |
| Termination | 5/16-18 Threaded Studs |
| Compliances | ABYC E-1, SAE J1171 |
| Opertating Temperature Rating | -40 °F Min. / +185 °F Max. |
| Mounting | Panel Mount |
| Amperage | 120 Amp |
