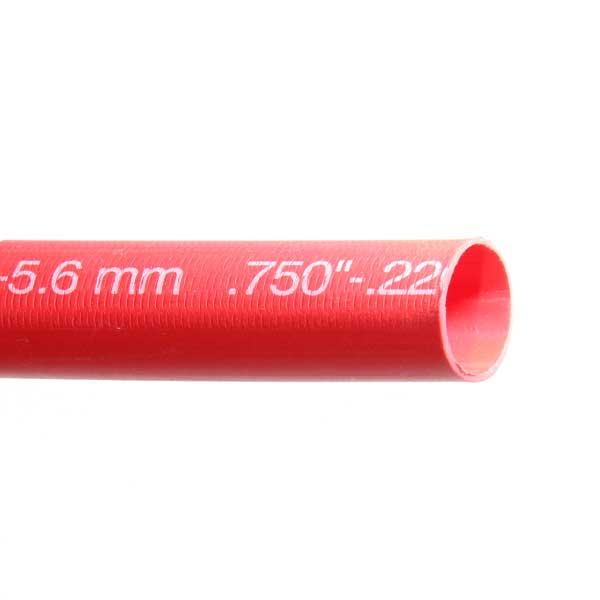

3:1 MIL-SPEC Heavy Wall Adhesive Lined Heat Shrink Tubing,
8-1 AWG, Red, 3/4"
Availability: In Stock
$9.25
(Per Foot)
Stock №
20-3751
Full Specifications
| Group | 3:1 MIL-SPEC Heavy Wall Adhesive Lined Heat Shrink Tubing |
| Brand | Generic |
| Part № | 20-3751 |
| U/M | Per Foot |
| Shrink Ratio | 3:1 |
| Size | .750" |
| Color | Red |
| Expanded / Recovery Dia. | .750" / .250" |
| Recovered Wall Thickness | .090" |
| Operating Temp. Range | -55°C to 110°C (67°F to 230°F) |
| Wire Range | 8-1 AWG |
| Tensile Strength | 2400 psi |
| Ultimate Elongation | 475% |
| Dielectric Strength | 500 V/mil |
| Volume Resistivity | 1014 Ω cm |
| Corrosive Effect | Non-Corrosive |
| Abrasion Resistance | Excellent |
| Flammability | Flame Retardant |
| MIL-SPEC | MIL-I-23053/15 Class I |
