Sealcon

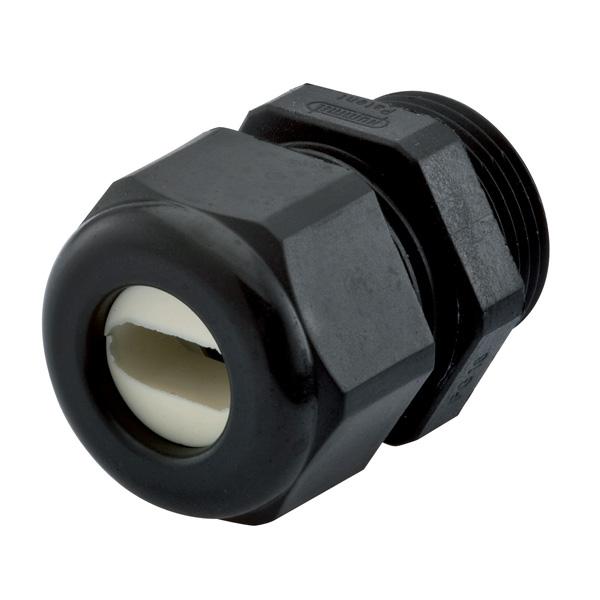

Strain Relief Flat Wire Fitting,
Black, .24" x .55", PG 21
Availability: In Stock
$9.06
(Each)
Strain relief fittings with inserts for flat cables. Made of nylon with Buna-N form seal. Resistant to salt water, weak acids, weak alkalis, alcohol, ether, esters, ketones, mineral, animal and vegetable oils. Non-corrosive. Submersible to 300 ft. V0 Rated. Deca BDE.
Stock №
59-2101
Goes With
Full Specifications
| Group | Flat Wire - Romex® Strain Relief Fittings |
| Brand | Sealcon |
| Part № | CD21AS-01 |
| U/M | Each |
| Application | • Food & Beverage • Renewable - Wind & Solar • Lighting • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Marine • Medical • Automotive / Transportation • Military / Navy / Government |
| Slot Size | .24" x .55" (6mm x 14mm) |
| Color | Black |
| Thread Type & Size | PG 21 |
| Major Thread Dia. | 1.11" (28.3mm) |
| Thread Pitch | .062" (1.59mm) |
| Clearance Hole | 1.12" (28.4 mm) |
| Body Length | 1.22" (31 mm) |
| Thread Length | .43" (11 mm) |
| Wrench Flat | 1.30" (33 mm) |
| Material | Nylon 6/6 |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 44.2 lb |
| Pull-Test Rating | 35 lb |
