Sealcon

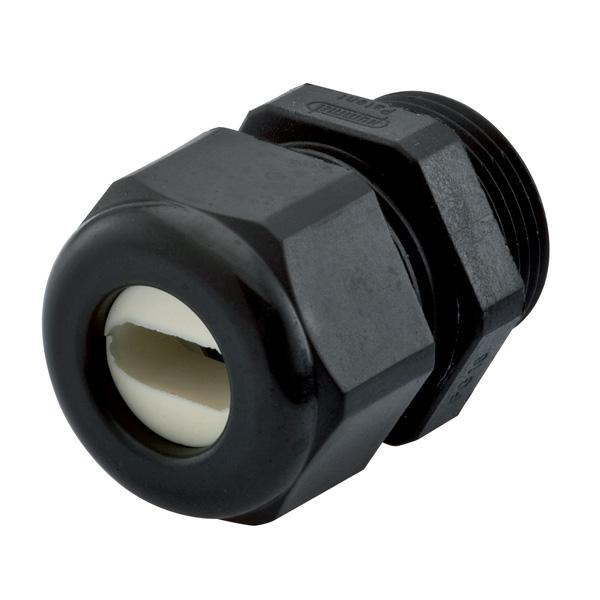

Strain Relief Flat Wire Fitting,
Black, .28" x .47", PG 16
Availability: In Stock
$6.94
(Each)
Strain relief fittings with inserts for flat cables. Made of nylon with Buna-N form seal. Resistant to salt water, weak accids, weak alkalis, alcohol, ether, esters, ketones, mineral, animal and vegetable oils. Non-corrosive. Submersible to 300 ft. V0 Rated. Deca BDE.
Stock №
59-1605
Goes With
Full Specifications
| Group | Flat Wire - Romex® Strain Relief Fittings |
| Brand | Sealcon |
| Part № | CD16AS-05 |
| U/M | Each |
| Application | • Food & Beverage • Renewable - Wind & Solar • Lighting • Robotics / Dynamic • Telecom / Communication • Secuirity / Monitoring • Packaging • Marine • Medical • Automotive / Transportation • Military / Navy / Government |
| Slot Size | .28" x .47" (6mm x 14mm) |
| Color | Black |
| Thread Type & Size | PG 16 |
| Major Thread Dia. | .89" (22.5mm) |
| Thread Pitch | .055" (1.51mm) |
| Clearance Hole | .88" (22.3 mm) |
| Body Length | 1.10" (28 mm) |
| Thread Length | .39" (10 mm) |
| Wrench Flat | 1.06" (27 mm) |
| Material | Nylon 6/6 |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 29.5 lb |
| Pull-Test Rating | 35 lb |
