Sealcon

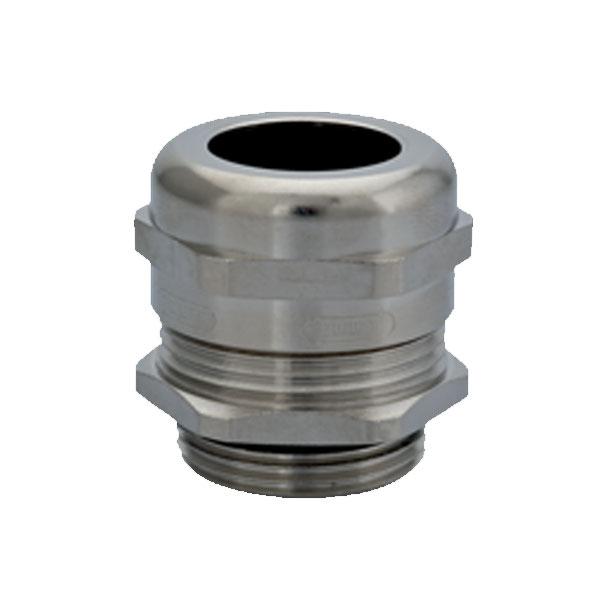

Nickel Plated Brass Strain Relief Dome Fitting,
.20" - .35" cable range, 1/2" NPT
Availability: In Stock
$23.86
(Each)
Stock №
59-3212
Sealcon
Goes With
Full Specifications
| Group | Standard Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD13NR-BE |
| U/M | Each |
| Cable Range | .20" - .35" (5 - 9 mm) |
| Thread Type & Size | 1/2" NPT |
| Major Thread Dia. | .84" (21.34mm) |
| Thread Pitch | .071" (1.81mm) |
| Clearance Hole | .83" (21.1 mm) |
| Body Length | .94" (24 mm) |
| Thread Length | .51" (13 mm) |
| Wrench Flat | .87" (22 mm) / .94" (24 mm) |
| Material | Nickel Plated Brass |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 22.1 lb |
| Pull-Test Rating | 35 lb |
