Sealcon

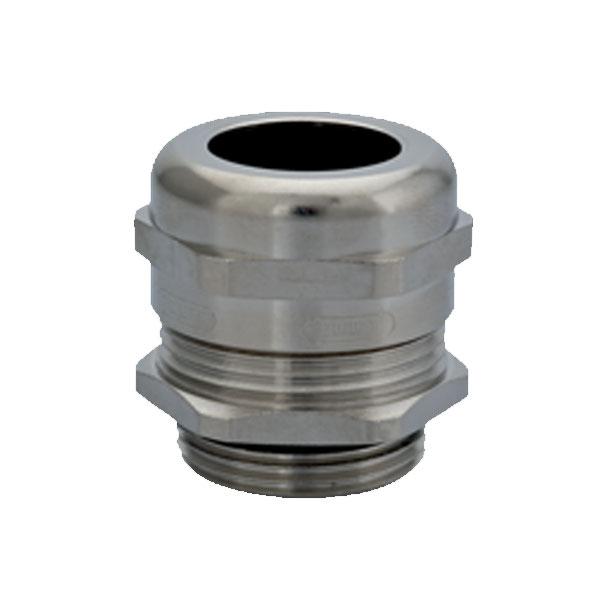

Nickel Plated Brass Strain Relief Dome Fitting,
.35" - .63" cable range, 3/4" NPT
Availability: In Stock
$32.08
(Each)
Stock №
59-3134
Sealcon
Goes With
Full Specifications
| Group | Reduced Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD21NR-BE |
| U/M | Each |
| Cable Range | .35" - .63" (9 - 16 mm) |
| Thread Type & Size | 3/4" NPT |
| Major Thread Dia. | 1.05" (26.67mm) |
| Thread Pitch | .071" (1.81mm) |
| Clearance Hole | 1.05" (26.7 mm) |
| Body Length | .98" (25 mm) |
| Thread Length | .51" (13 mm) |
| Wrench Flat | 1.18" (30mm) |
| Material | Nickel Plated Brass |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 59 lb |
| Pull-Test Rating | 35 lb |
