Sealcon

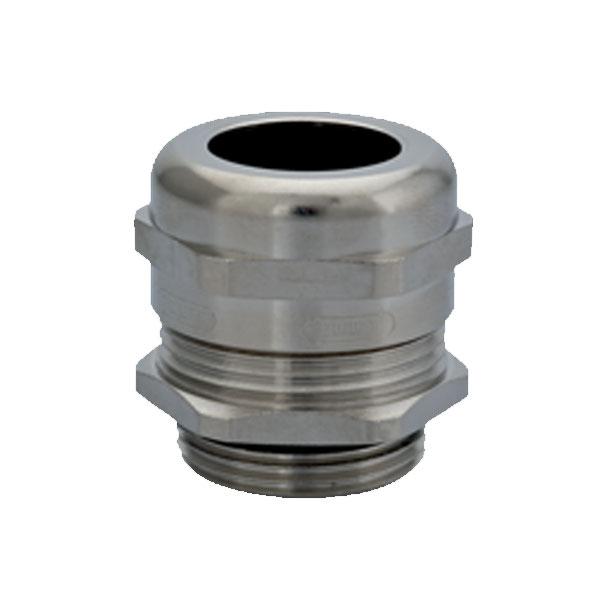

EMI Nickel Plated Brass Strain Relief Dome Fitting,
.12" - .26" cable range, PG 7
Availability: In Stock
$14.06
(Each)
Liquid EMI / RFI proof grounded strain relief fittings made of NIckel Plated Brass. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.
Stock №
59-3407
Sealcon
Goes With
Full Specifications
| Group | Standard Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD07AA-BE |
| U/M | Each |
| Application | • Renewable - Wind & Solar • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Automotive / Transportation • Military / Navy / Government |
| Cable Range | .12" - .26" (3 - 6.5 mm) |
| Thread Type & Size | PG 7 and NPT 1/4" |
| Major Thread Dia. | .49" (12.5mm) |
| Thread Pitch | .05" (1.27mm) |
| Clearance Hole | .49" (12.5 mm) |
| Body Length | .75" (19 mm) |
| Thread Length | .20" (5 mm) |
| Wrench Flat | .55" (14 mm) |
| Material | Nickel Plated Brass |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 14.4 lb |
| Pull-Test Rating | 35 lb |
