Sealcon

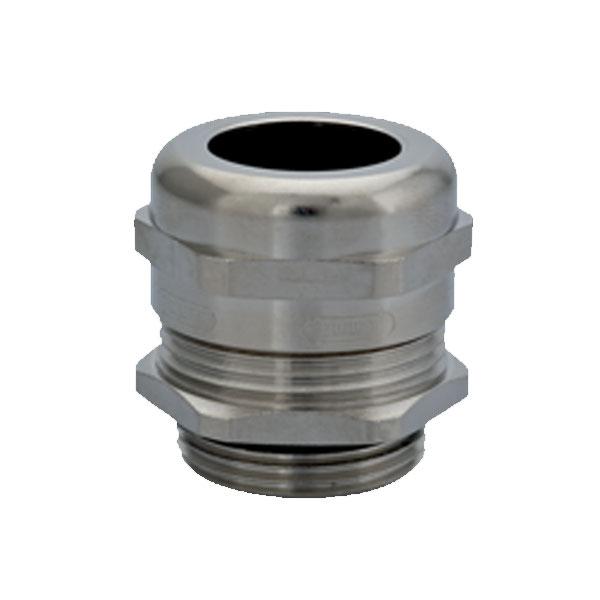

EMI Nickel Plated Brass Strain Relief Dome Fitting,
.24" - .47" cable range, 1/2" NPT
Availability: In Stock
$23.64
(Each)
Liquid EMI / RFI proof grounded strain relief fittings made of NIckel Plated Brass. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.
Stock №
59-3112
Sealcon
Goes With
Full Specifications
| Group | Standard Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD13NA-BE |
| U/M | Each |
| Application | • Renewable - Wind & Solar • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Automotive / Transportation • Military / Navy / Government |
| Cable Range | .24" - .47" (6 - 12 mm) |
| Thread Type & Size | 1/2" NPT |
| Major Thread Dia. | .84" (21.34mm) |
| Thread Pitch | .071" (1.81mm) |
| Clearance Hole | .83" (21.1 mm) |
| Body Length | .94" (24 mm) |
| Thread Length | .51" (13 mm) |
| Wrench Flat | .87" (22 mm) / .94" (24 mm) |
| Material | Nickel Plated Brass |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 36.9 lb |
| Pull-Test Rating | 35 lb |
