Sealcon

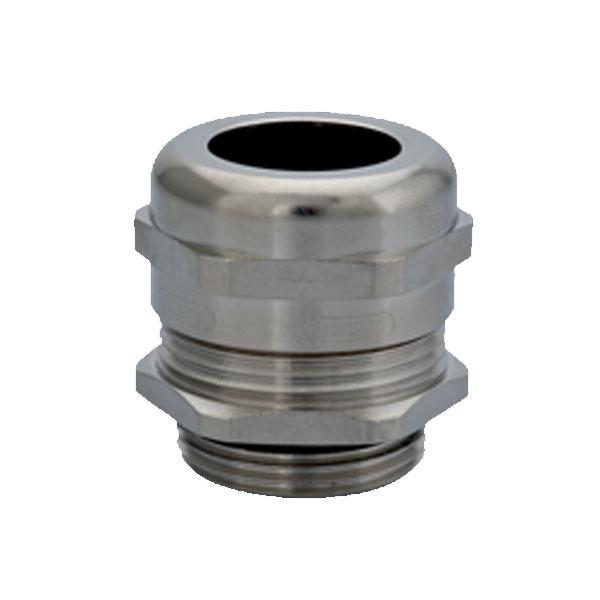

EMI Nickel Plated Brass Strain Relief Dome Fitting,
.51" - .79" cable range, PG 29
Availability: In Stock
$39.90
(Each)
Liquid EMI / RFI proof grounded strain relief fittings made of NIckel Plated Brass. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.
Stock №
59-3530
Goes With
Full Specifications
| Group | Standard Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD29AR-BE |
| U/M | Each |
| Application | • Renewable - Wind & Solar • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Automotive / Transportation • Military / Navy / Government |
| Cable Range | .51" - .79" (13 - 20 mm) |
| Thread Type & Size | PG 29 |
| Major Thread Dia. | 1.46" (37mm) |
| Thread Pitch | .062" (1.59mm) |
| Clearance Hole | 1.47" (37.3 mm) |
| Body Length | 1.14" (29 mm) |
| Thread Length | .31" (8 mm) |
| Wrench Flat | 1.57" (40 mm) |
| Material | Nickel Plated Brass |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 59 lb |
| Pull-Test Rating | 35 lb |
