Sealcon

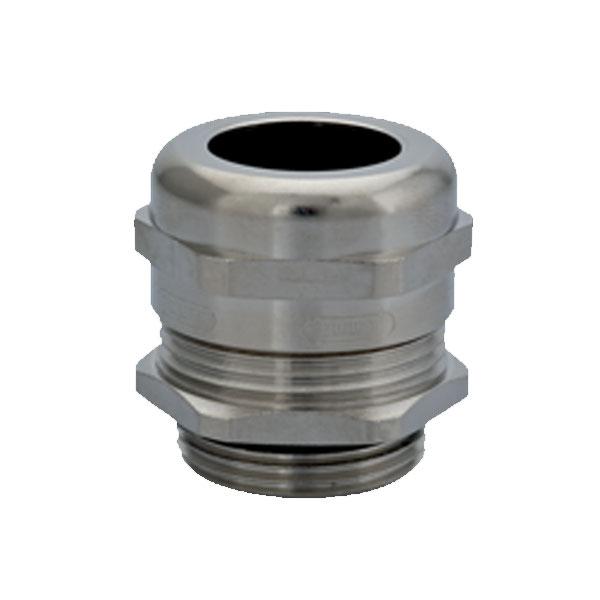

EMI Nickel Plated Brass Strain Relief Dome Fitting,
.20" - .35" cable range, PG 13
Availability: In Stock
$18.52
(Each)
Liquid EMI / RFI proof grounded strain relief fittings made of NIckel Plated Brass. Submersible to 300 ft. V0 Rated -flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. Deca BDE, VDE.
Stock №
59-3514
Sealcon
Goes With
Full Specifications
| Group | Standard Liquid Tight Strain Relief Dome Fittings |
| Brand | Sealcon |
| Part № | CD13AR-BE |
| U/M | Each |
| Application | • Renewable - Wind & Solar • Robotics / Dynamic • Telecom / Communication • Security / Monitoring • Packaging • Automotive / Transportation • Military / Navy / Government |
| Cable Range | .20" - .35" (5 - 9 mm) |
| Thread Type & Size | PG 13 |
| Major Thread Dia. | .80" (20.4mm) |
| Thread Pitch | .055" (1.51mm) |
| Clearance Hole | .80" (20.3 mm) |
| Body Length | .94" (24 mm) |
| Thread Length | .26" (6.5 mm) |
| Wrench Flat | .87" (22 mm) |
| Material | Nickel Plated Brass |
| Operating Temperature | - 40°C to 100°C (- 40°F to 212°F) |
| Pressure Rating | 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K |
| Recommended Torque | 22.1 lb |
| Pull-Test Rating | 35 lb |
